Brushed DC Motors (PMDC)

Category: Electric Motors

Brushed DC motors are a proven, cost-effective solution when you need reliable torque, simple speed control without external electronics, and a motor that can be sourced, configured, and delivered fast.

Key advantages

Affordable without compromise

Brushed DC motors deliver the right balance of performance and price for your application.

Runs without a controller

No external electronics required. Useful alternative to BLDC motors.

High starting torque

PMDC motors generate an impressive output performance despite being generally smaller in size.

Configurable

Paired with a gearbox for to reduce speed and increase torque for the ultimate geared motor solution.

Product range

An overview of key product specifications. Compare products across our product range and partner brands to find the right fit for your application.

maxon: Brushed DC motors

maxon Brushed DC motor

maxon DC motors are equipped with powerful permanent magnets and are suitable for applications in various sectors, from mobility to medical care to industry. Brushed DC motors can be operated without external electronics. Consequently, they are a useful alternative to BLDC motors. We have structured our series of brushed DC motors in accordance with key parameters to help you find the appropriate motor faster.


DCX
DC-max
RE
Key feature
Highest torque density, smooth running
Best price-performance ratio
High acceleration and 90% efficiency
Diameter
Ø 6–35 mm
Ø 16–26
Ø 50–65
Motor length
15.6–72 mm
25.4–44.7 mm
15.6–131.4 mm
Power
0.3–80 W
2–22 W
0.3–250 W
Nom. torque
up to 138 mNm
up to 32.7 mNm
up to 888 mNm
Max. speed
up to 18 000 rpm
up to 11 000 rpm
up to 23 000 rpm
Magnet
NdFeB
NdFeB
NdFeB
Configurable
Yes – 11 working days
Yes – 11 working days
No
← Scroll to see more →





Parvalux: PMDC Standard Range

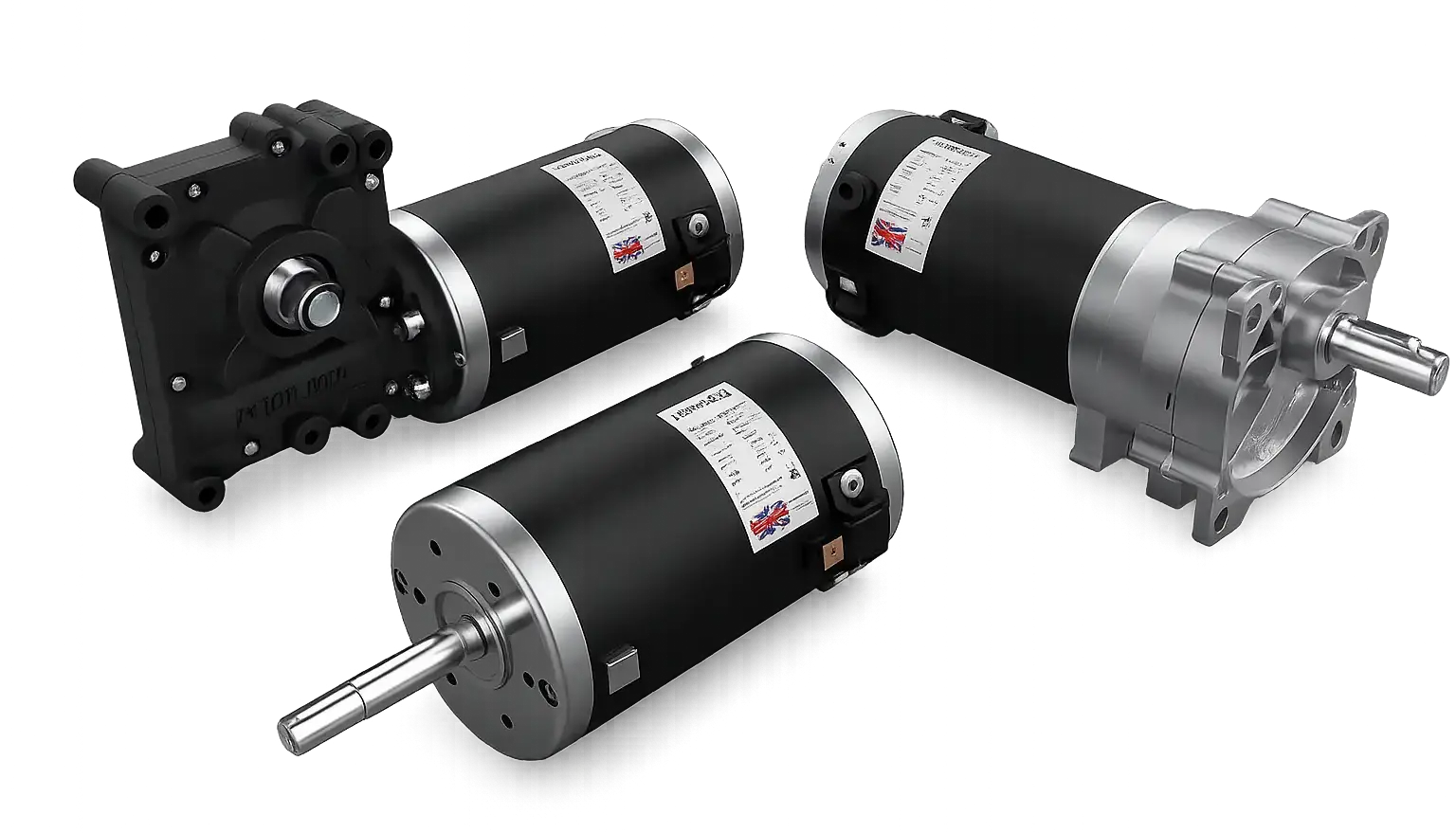

parvalux PMDC motor

In a Permanent Magnet DC (PMDC) motor, permanent magnets located in the stator provide the magnetic field, instead of it being created in stator windings. This makes them cost-effective with a high starting torque. Parvalux motors can be combined with gearboxes to reduce speed and increase torque to meet your precise requirements.


PM7 Range
PM8 Range
PM9 Range
PM10 Range
PM11 Range
PM3 Range
PM4 Range
PM1 Range
PM2 Range
PM5 Range
PM6 Range
PM50 Range
PM70 Range
PM90 Range
PM60 Range
Voltage
12–48 V
12–220 V
12–220 V
12–220 V
12–220 V
12–220 V
12–220 V
12–220 V
12–220 V
12–220 V
12–220 V
12–220 V
12–220 V
12–48 V
12–48 V
Speed
3 000
3 000
3 000
3 000
3 000
3 000
3 000
3 000
3 000
3 000
3 000
3 000
3 000
3 000
3 000
Power (cont.) W
15
25
38
45
101
119
141
182
182
170
220
210
273
79–157
157–283
Torque cont. Nm
0.05
0.08
0.12
0.14
0.32
0.38
0.45
0.50
0.58
0.54
0.70
0.67
0.87
0.25–0.50
0.50–0.90
Torque int. Nm
0.08
0.11
0.17
0.20
0.53
0.50
0.58
0.65
0.68-0.75
0.7
0.9
1.17
1.15
0.42–0.88
1.17–1.50
← Scroll to see more →





Parvalux: PMDC EPM Range

parvalux PMDC EPM motor

The Enhanced Permanent Magnet DC range from Parvalux produces higher efficiency and power density than the standard PM series. A fan-cooled (vented) variant is available for the EPM63.


EPM50 Range
EPM63 Family
EPM63 Ventilated Range
Voltage
12–48 V
12–48 V
12–48 V
Speed
3 000 rpm
3 000 rpm
3 000 rpm
Power (cont.)
79–151 W
220–471 W
327–471 W
Torque cont. (S1)
0.25–0.48 Nm
0.70–1.5 Nm
1.00–1.50 Nm
Torque int. (S2)
0.44–0.80 Nm
1.20–2.4 Nm
1.60–2.40 Nm
Efficiency
up to 81 %
up to 70 %
up to 70 %
Frame
50 mm frame
63 mm, 50 mm, 100 mm
63 mm, 50 mm, 100mm
Compatible gbxs
GB4, GB41, GB9, GB12, M Box
GB9, GB12, GB14
GB9, GB12, GB14
← Scroll to see more →





Parvalux: PMDC Modular Range

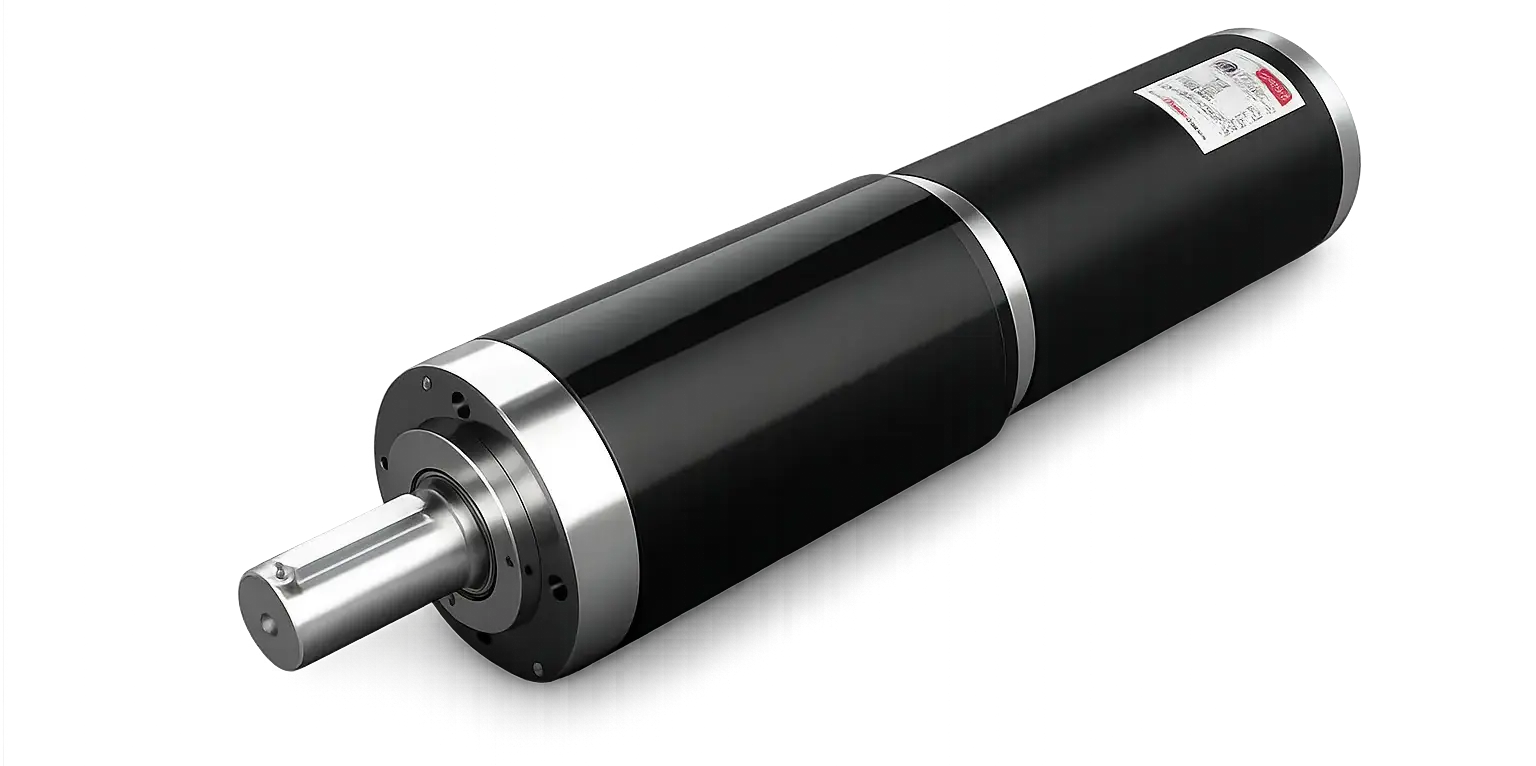

parvalux PMDC Modular motor

The modular range from Parvalux is a carefully curated range of motors, gearboxes, and accessories that can be explored and configured. The modular range offers a rapid route to proof-of-concept for your project.


RE38
BRx42
BRx52
BRx63
BRx70 Range
BRx90
Frame Ø
Ø 38 mm
Ø 42 mm
Ø 52 mm
Ø 63 mm
Ø 70 mm
Ø 90 mm
Stack lengths
25/40 mm
25/40 mm
30/58 mm
25/55 mm
40/60 mm
50/75 mm
Voltage
24–48 V
12–48 V
12–48 V
12–48 V
12–48 V
12–48 V
Speed
3 200–3 250 rpm
3 000 rpm
3 000 rpm
2 500–3 000 rpm
3 000 rpm
2 500–3 000 rpm
Power (cont.)
24–40 W
12–18 W
28–69 W
47–85 W
79–157 W
157–283 W
Torque cont. (S1)
0.07–0.12 Nm
0.04–0.06 Nm
0.09–0.22 Nm
0.18–0.27 Nm
0.25–0.50 Nm
0.50–0.90 Nm
Torque int. (S1)
0.11–0.18 Nm
0.06–0.09 Nm
0.15–0.35 Nm
0.30–0.45 Nm
0.42–0.88 Nm
1.17–1.50 Nm
Compatible gbxs
PGx42
PGx42
GB80
GB28, GB80
GB80, GB12
GB12, GB9, GB65
Accessories
Encoder
Encoder
Encoder
Encoder, Brake
Encoder, Brake
Encoder, Brake
← Scroll to see more →

Why these brands

DNH supplies two complementary ranges. maxon DC motors use a patented ironless rotor for exceptional torque density and smooth running in precision applications. Parvalux PMDC motors use a robust iron-wound rotor for high starting torque, wide voltage range, and long service life in industrial and mobility applications.

Where maxon's ironless rotor delivers unmatched acceleration and precision, Parvalux fills the gap with higher-torque, wider-voltage motors suited to duty cycles in building automation, patient care, and industrial equipment.

Maxon
Parvalux by Maxon

Typical Applications

This product range is deployed across multiple sectors.

Mobility scooters Vertical platform lifts Wheelchair lifts Stairlifts Powered wheelchairs Personnel lifts Patient hoists Mobility vehicles Wheelchair ramps Amusement machines Golf trolleys Access control barriers Automated gates Powered mobility Conveyor drives Packaging machinery Positioning systems Medical equipment
